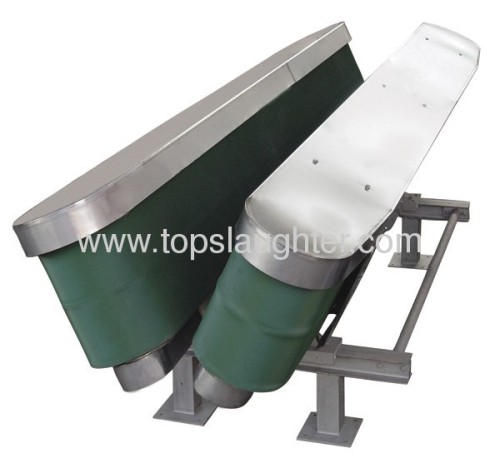

Livestock abattoir equipment living sheep/goat v type conveyor

This machine is used to transport sheep or goats to the slaughtering process, which connects sheep passage with slaughtering room. It aims to put sheep or goats to the right positon for quick stunning. Then they are carried to the table for slaughtering.

Product Features:

1. The transmission way is to clamp sheep/goats stomach;

2. Conveyor belt is made of nylon, it is easy to wash and maintain;

3. V type, width with adjustable angle;

4. Variable frequency motor to adjust conveying speed based on actual needs;

5. High efficiency and working steady.

6.Can work continuously, applicable to large and medium slaughtering and processing plants.

Technical Parameters

1. Size:3890×1350×1265mm

2. Motor: 2.2kw

3. Rated Voltage: 380VAC

4. Control Voltage:24VDC

5. Speed: adjustable

6. Rack: 80×80×4 stainless steel square tube and stainless steel 10# channel steel

7. V type structure: made of 4mm nylon

8. Transmission drum: made of stainless steel ∮360×500
